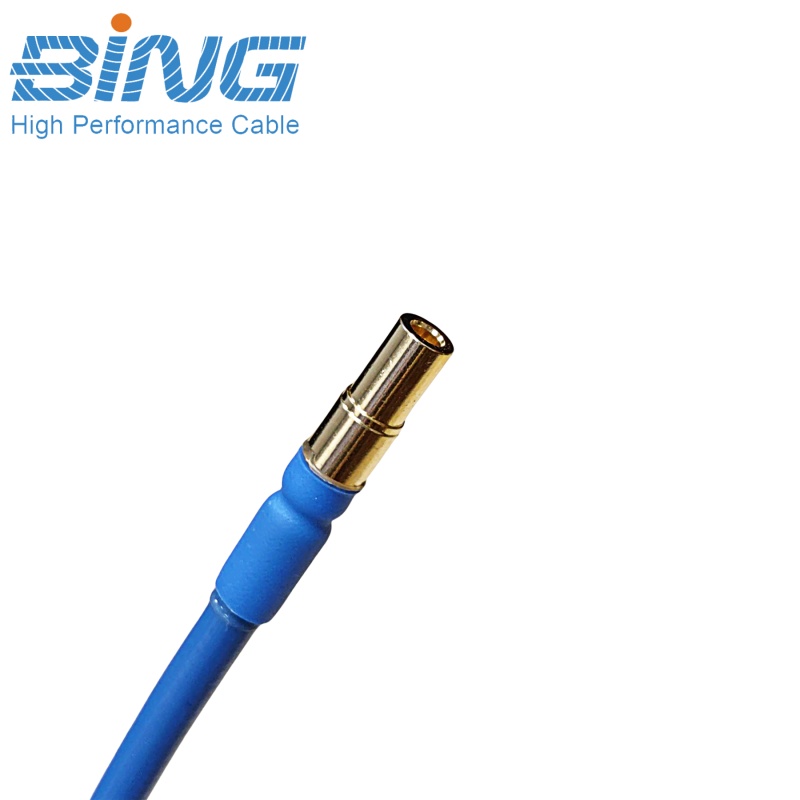

HAJ520 Ultra-Flexible Silver Plated Copper Microwave Ablation Cable Microwave Cable Assembly

Inner Conductor : Silver Plated Copper

Insulation : LD PTFE

Application : Medical application

Brand Name : Bing Wire & Cable

Velocity of Propagation : 70%

Color : Customized Color

Model Number : HAJ520

Place of Origin : Shanghai, China

Certification : CE/RoHS

MOQ : 1000 meters

Price : $3.58-7.13 / meter

Supply Ability : 1000m 7 work days

Delivery Time : 10-15 work days

Type : Microwave cable assembly

Temperature Range : -60°C~180°C

Jacket : TPU

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Contact Now

Product Description

HAJ520 is an ultra-flexible high-strength transmission cable designed for microwave ablation systems. It operates across 0–2.45 GHz and handles 100W peak power. With a 5.20mm diameter and thermoplastic elastomer outer jacket, the cable features a smooth surface that is easy to clean and sterilize.

Core Advantages

  • Ø5.20mm Lightweight Diameter – Thermoplastic elastomer outer jacket for smooth surface and easy sterilization

  • VSWR < 1.20 (0 – 2.45 GHz) – Excellent impedance matching for stable performance

  • Attenuation 0.55 dB/m @ 2.45 GHz – Efficient power transmission

  • 100W Peak Power Handling – Cable temperature ≤ 48°C under full load

  • 96h Salt Spray Test Passed – Reliable in harsh environments

  • Multiple Connector Options – N / BNC / miniBNC / MCX / RPMCX / SMA

Application Scenarios

HAJ520 is used as the output cable between the microwave generator and the ablation needle. Its ultra‑flexible design makes it ideal for precise procedures in tight spaces, such as CT‑guided interventions. It also performs well in multi‑channel systems, where multiple cables need to be managed easily. The smooth surface speeds up cleaning and sterilization, making it a good choice for busy outpatient settings.

Why to Choose Our HAJ520 Microwave Cable Assembly?

  • Ultra-Flexible Construction – Smooth routing and repeated bending resistance for extended lifespan

  • High-Precision 50Ω Matching – Minimized reflection for a more stable system

  • Superior Power Transmission Efficiency – Cooler operation, comfortable to handle

  • Strong Compatibility – Adapts to mainstream generators and microwave antennas, ideal for high-power applications


Specification

Physical Properties

Item Material Diameters (mm)
Inner Conductor Silver Plated Copper 1.26
Insulation LD PTFE -----
Outer Conductor Aluminum/Polyester composite foil silver/Tin plated copper wire braided 4.00
Jacket TPU,Color(Upon to request) 5.20

Electrical Properties

Capacitance (pF/m) 87
Impedance (Ohms) 50
Velocity of Propagation (%) 77
Max Voltage (Vrms) 2000
Max Frequency (MHz) 2450
Bend Radius (mm) 16
Temperature Range (℃) -40~+80

Attenuation

Frequency (MHz) Attenuation (dB/m) Power(W)
2450 0.60 120
Product Detail

HAJ520 Ultra-Flexible Silver Plated Copper Microwave Ablation Cable Microwave Cable AssemblyHAJ520 Ultra-Flexible Silver Plated Copper Microwave Ablation Cable Microwave Cable Assembly

HAJ520 Ultra-Flexible Silver Plated Copper Microwave Ablation Cable Microwave Cable AssemblyHAJ520 Ultra-Flexible Silver Plated Copper Microwave Ablation Cable Microwave Cable Assembly

FAQ
1.Are you a manufacturer or a trading company?
A: We are a professional manufacturer of wires and cables, based in Shanghai, with extensive experience since 2005.
2.What’s your company MOQ?
A: To ensure the best cost and quality for different products, our MOQ varies, normally it's 2km. Please reach out to our sales team for specific and flexible options.
3.Can I get the samples?
A: Yes, we encourage you to verify our quality. Samples are available upon request. A nominal fee may apply, which is deductible from your future bulk order.
4.Does your company accept customization?
A: Yes, we provide both OEM and ODM services to meet your specific requirements.
5.How can I get the right price?
A: For a precise quotation tailored to your needs, please contact us with detailed specifications (e.g., type, length, color, packaging). We respond quickly.
6.What services can we provide?
A: We provide a seamless trading experience: Secure payment (T/T, PayPal), flexible trade terms (FOB Shanghai, EXW Shanghai, etc.), and cooperation with major logistics companies (DHL, FedEx, UPS, or your preferred agent) for door-to-door delivery.Other terms can be discussed based on your needs.
7.How long will the delivery take?
A: The general production lead time is 10-15 working days after order confirmation and deposit. Exact time depends on the order quantity and customization complexity.
8.How do you solve after sale service?
A: Our relationship doesn't end after a sale. We offer comprehensive after-sales support. If you encounter any issues, our team will provide a swift and effective solution to ensure your complete satisfaction.
